The Seawater Desalination Equipments adopts the world most advanced technology which is the "Reverse Osmosis Membrane isolation technology" and it is the most advanced technology widely recognized in the world today.
It is efficiently practical and convert brackish water into ultra clean clear drinking water free from odors and bacteria borne disease and etc., .
The Reverse Osmosis Membrane used in all our units are from internationally renowned manufacturer from the US and these also includes the superior quality pressure vessel and the high pressure pump too.
Quality is an important factor here especially in maintaining the performance consistency of the whole system, thus it will eventually contribute to the effectiveness in the removal of harmful elements like inorganic salts, heavy metal ions, organic bacteria, pathogens, etc.
Our System applies low operational pressure resulting in low operational cost, longer life span on all the components and wide application abilities.
Our unit has been specially designed to be compact in size to save space yet still maintaining the highest quality and further to this; it comes complete with a PLC processing and operation control for operational convenience. Our system is configured in a way to make it functionally
easy for all to operate and also to maintain the equipment.
This system unit includes are as follows:
Feed Pump, Pre-filtration System, High Pressure Pump, Reverse Osmosis Membrane, Control system and Meter.
| Model | Output Capacity (m3/day) | Dimensions L*W*H(mm) |
| RO-01 | 1.0 | 1200*650*700 |
| RO-02 | 2.0 | 1200*650*700 |
| RO-03 | 3.0 | 1200*650*700 |
| RO-05 | 5.0 | 1200*650*700 |
| RO-10 | 10.0 | 1200*650*700 |
| RO-20 | 20.0 | 1700*900*1700 |
| RO-30 | 30.0 | 1700*900*1700 |
| RO-50 | 50.0 | 1700*900*1700 |
| RO-70 | 70.0 | 1700*1000*1700 |
| RO-100 | 100.0 | 1700*1000*1700 |
This equipment can make seawater get rid of mineral,Pb ppm,organism and bacteria and many others, and become ultra clean and clear freshwater which meets the national drinking water quality standard.
The system has installed new body case with all pipes made of resistant material, so that the whole system can use a long time.
RO system has adopted advanced RO system components and high-quality membranes elements, and has designed according to the equipment's output combining with unique efficient technology so that the system can save much energy.
More advanced devices has been installed in this system, such as flow and pressure control meters,atmospheric valve and blow down piping, which make sure the whole system work stably , safely and conveniently.
|
|

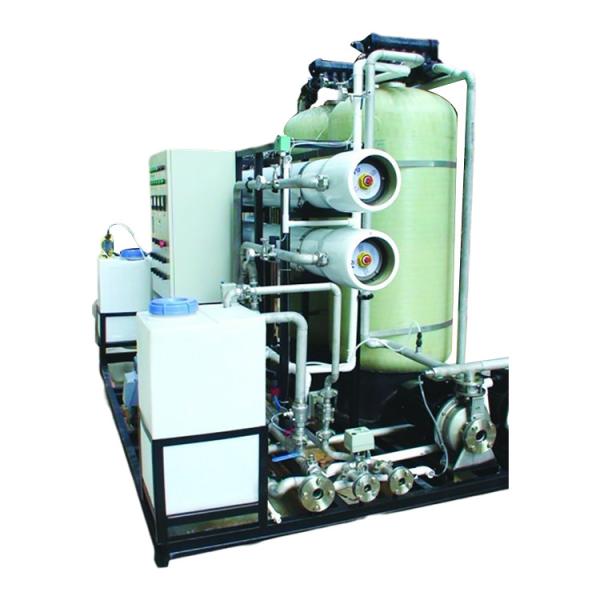

1T-100T Per Day Reverse Osmosis RO Seawater Desalination Plant Images
|
